Description
Automatic ADA Access That Just Works — Designed, Engineered, and Built in the USA

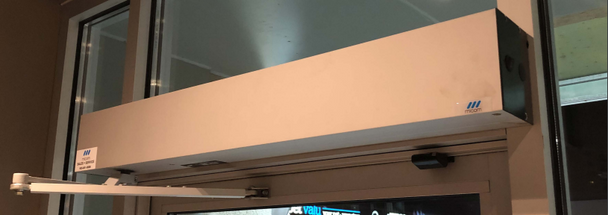

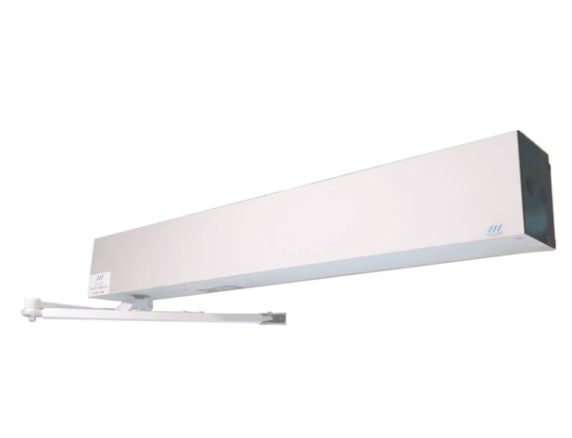

The Micom Smart Swing 3® Low Energy Door Operator (SW800) is the workhorse that schools, hospitals, retail stores, churches, government buildings, and private homes choose when they need barrier-free access that holds up to real-world use, day after day. It's the rare opener that performs equally well on a quiet residential entry and on a high-traffic mall door — and it does both without compromise.
Setup in minutes, not hours. Forget memorizing codes or fighting tiny DIP switches. The Smart Swing 3® uses an integrated Bluetooth® app for fully visual, on-device programming. Every setting — speed, hold time, latching, power close — is a tap away. And because programming stays on the device, you skip the security risk of internet-connected access hardware.
Two operators in one. Most low-energy openers struggle when traffic ramps up. The Smart Swing 3® was built to switch modes. Use it as a quiet, ADA-compliant low-energy operator for accessibility, or push it into high-frequency duty for entries that see thousands of cycles a day. It accepts standard safety inputs and provides 24V output for activation devices, magnetic locks, and accessories.
A gentle Push & Go option makes the door feel natural to use, with adjustable open and close speeds that prevent accidents if someone unintentionally blocks the swing.
Fully Adjustable Performance
- Opening speed
- Back check speed and back check position
- Closing speed
- Latching speed and latching position
- Hold-open time: 1 to 60 seconds
- Electronic door stop — fully adjustable
- Power close — fully adjustable
- Auto-reverse on obstruction
- Built-in wind control with adjustable back check
- 12V / 24V DC electromagnetic lock compatible
- Optional Push & Go (built in)
- Optional built-in battery backup
- Silver finish standard; black finish available
Built for Where You Need It
Healthcare facilities. Hospitals. Airports. Universities. K–12 schools. Government buildings. Multi-family housing. Retail stores. Office buildings. Banks. Churches and clubhouses. Private homes. Wherever ADA-compliant entry matters, the Smart Swing 3® delivers.
Why this operator earns its price
- Premium components and continuous-duty construction designed for the lowest life-cycle cost in its class
- Heavy-duty, robust build engineered to last
- Flexible design that adapts to nearly any job-site condition — get it done the first time
- USA-made with a 3-year warranty against manufacturing defects
- In stock and ready to ship — typically leaves our warehouse in 2 business days, $99 ground shipping
Configure your operator
Choose your door handing (left/right, inswing/outswing), finish (silver or black), activation method (wireless or hard-wired push buttons in single or dual configurations), and add aluminum bollard posts or built-in battery backup if your installation calls for it.
Not sure which configuration fits your door? Call us at 800-413-3302 — our door-opener specialists will walk you through it before you buy. We'd rather spend ten minutes on the phone than have you order the wrong handing.
Questions and Answers
How do I figure out my door handing? ▼
See the diagram just below this Q and A. Be sure to note that this diagram is from the outside of the doorway looking in. Most importantly is the question of are you pushing the door open (inside pushing door out) or pulling the door open (inside pulling the door to exit). Left and right handing can be changed in the field, however push to open or pull to open require different arms.
Will the Smart Swing work with my existing magnetic lock? ▼
Yes, the Smart Swing is compatible with 12V/24V DC magnetic locks. Instructions include how to wire the magnetic lock to the board inside the motor housing.
Do I need battery backup? ▼
In the event of a power failure the Smart Swing will not operate. If the application includes no person nearby to open the door for a disabled user, then a battery backup is a smart addition.
What's the difference between wireless and direct wired buttons? ▼
Direct wire buttons require running low voltage wires from the motor housing to the button. In new construction or remodeling this might be possible without messy exposed wiring. For retrofit and non-remodeling situations, we suggest the wireless setup which includes a transmitter for each button and a receiver that is attached in the motor housing.
Can I install the Smart Swing myself? ▼
Yes. A good handyman can install one in less than a day. We have never had a failed installation by one of our customers to our knowledge. Step by step instructions are included as well as an install video you can watch right here on this page.
What happens if a part fails? ▼
This product includes a 3 Year Warranty from the manufacturer. We will replace any defective part that is included in the warranty. Misuse or incorrect installation procedures can exempt you from the warranty. We supply the warranted part, however, since CareProdx did not do the installation, it is the buyers responsibility to change out the defective part.
CareProdx Door Opener Policy: This door opener, when installed properly for its intended use by a skilled craftsman, will be relatively trouble free and will operate properly for its intended use. CareProdx is not a access systems company and cannot assist with control systems integration. Should a part fail, while under warranty, CareProdx.com will replace the part at no expense to the purchaser. Labor, express freight and loss of use expenses are not covered by our warranty. Likewise, the failed part must be returned prior to replacement, or the buyer must purchase the replacement part and await a refund after that part has been returned and inspected by CareProdx.com. If you are unsure if this opener will work in your circumstance, please talk with a customer service, a door opener representative can talk with you in detail before your purchase. Because it is impossible for CareProdx.com to ascertain if a door is properly installed and operating properly and it is impossible for CareProdx.com to ascertain if the door opener is properly installed, we do not accept returns on door openers. No product can be returned after 30 days from the date of delivery. By purchasing this product, customer agrees to this returns policy. Restocking fees of up to 20% may apply for the return of non-installed equipment. Other restrictions may apply, please see our full Returns Policy for additional details.
